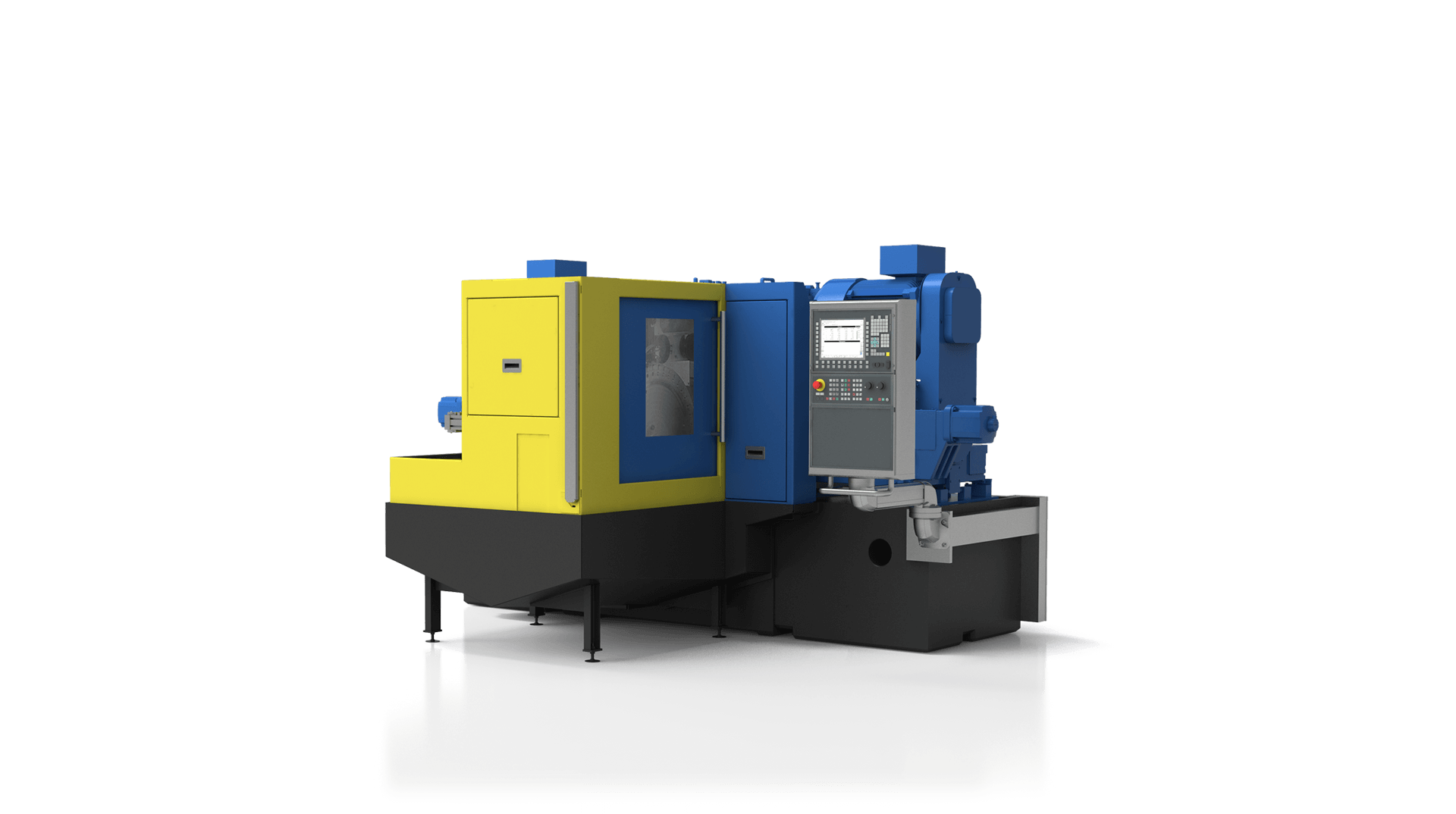

SATURN - Double surface grinding machines

The Erwin Junker Operator Panel was specifically developed to control grinding machines. All machine components are controlled using the operator panel – irrespective of the series and the used control system. The identical structure, intuitive menu guidance and visualization of the workpiece geometry make for extreme user convenience and flexibility in operation. Programming takes place directly using the operator panel or an external programming tool.

The machine bed made of mineral cast provides impressive damping behavior and torsional rigidity. The temperature stability allows fluctuations in the ambient temperature to be compensated with a minimum of effort, ensuring a high level of dimensional stability throughout the whole day.

The extremely robust and inherently rigid wheelheads of the SATURN are guided in pre-clamped recirculating roller bearings, while the X-feed is carried out CNC-controlled via high-precision ball screws and servo drives  with glass scales. Swiveling and inclination of the grinding wheels are adjusted manually during setup. This can also be realized with NC adjustment as an option.

Grinding wheel dressing is CNC controlled. A driven diamond dressing wheel or a workpiece-dependent diamond profile roller can be used. Dressing takes place manually or using an automatic dressing program with grinding wheel compensation.

The infeed and discharge of the grinding zone on the SATURN is equipped with two opposing guide plates each. During the workpiece infeed the guide plates are adjusted to the unmachined part width and at the discharge to the finished part width. The left-hand guide plates are rigidly fastened on the SATURN 915 and serve as a reference level, while the right-hand guide plates are adjustable with NC axes. On the SATURN 660 all plates are adjustable via axes.

The measurements system is individually adjusted to the workpiece and the customer's specifications. The recorded measured values are entered and utilized for measurement correction in line with the prepared measurement strategy. Their two dampened measurement probes are positioned on the discharge guide plates, and the control electronics with the display is integrated in the operator panel.

The SATURN double-wheel surface grinding machine is equipped with automated feeding for virtually any workpiece.

In case of an fire, the machine interior is automatically hermetically sealed, suffocating a fire before it has a chance to spread. If required, extinguishers (CO² or water mist systems) and exhaust air purification systems can be additionally installed. A competent partner for fire protection and filtration solution solutions is LTA Lufttechnik GmbH, which also belongs to the JUNKER Group and which researches, develops and produces filtration systems for industrial air purification.
